Technical Specifications
Rohm RSA12LTE25 technical specifications.
General
| Clamping Voltage | 19.5V |
| Direction | Unidirectional |
| Height | 2mm |
| Length | 4.5mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600W |
| Max Surge Current | 31A |
| Mount | Surface Mount |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Polarity | Unidirectional |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 2.6mm |
| Working Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
Rohm RSA12LTE25 Datasheet
Download the complete datasheet for Rohm RSA12LTE25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

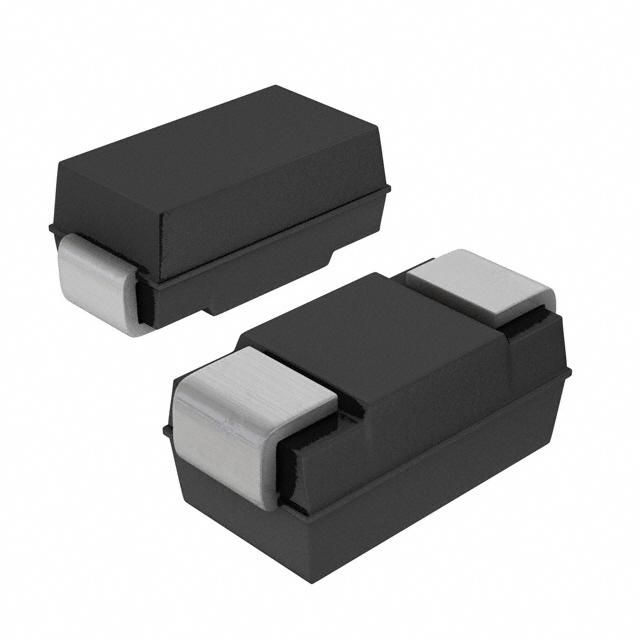

Product Images
