Rohm RSA30LTE25 technical specifications.
General
| Clamping Voltage | 41.4V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Min Breakdown Voltage | 28.5V |
| Max Reverse Leakage Current | 5uA |
| Mount | Surface Mount |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 25.6V |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 14.4A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 25.6V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Rohm RSA30LTE25 Datasheet
Download the complete datasheet for Rohm RSA30LTE25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

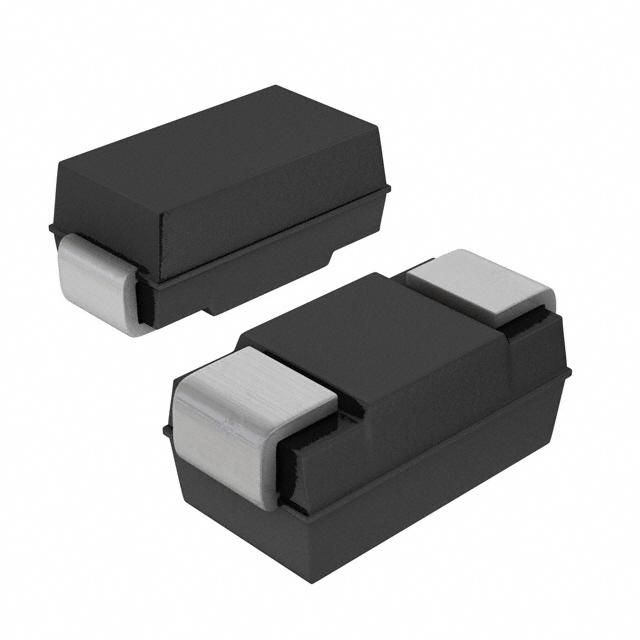

Product Images
