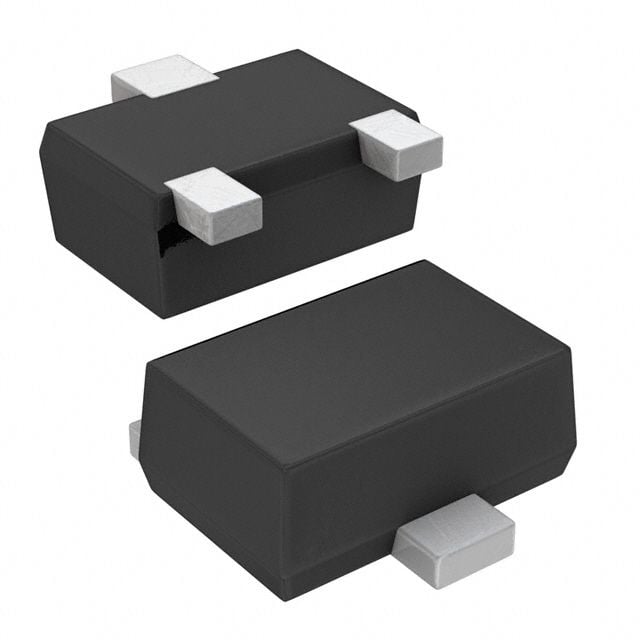

The RSB12ZT2L is a surface mount bidirectional Zener diode with a minimum breakdown voltage of 9.6V and a maximum operating temperature of 150°C. It has a peak pulse power of 150mW and a maximum surge current of 100nA. The diode is packaged in a SOT-723 case and is available in tape and reel packaging. The RSB12ZT2L is RoHS compliant and suitable for use in surface mount applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Rohm RSB12ZT2L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 1pF |
| Package/Case | SOT-723 |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Lead Free | Lead Free |
| Min Breakdown Voltage | 9.6V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Surge Current | 100nA |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Operating Supply Voltage | 14.4V |
| Packaging | Tape and Reel |
| Peak Pulse Power | 150mW |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 9V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| RoHS | Compliant |
