N-Channel Silicon Carbide MOSFET featuring 1200V drain-source voltage and 10A continuous drain current. This power field-effect transistor offers a maximum on-resistance of 585mΩ and a typical on-resistance of 450mΩ. Designed for through-hole mounting in a TO-247 package, it operates within a temperature range of -55°C to 175°C with a maximum power dissipation of 85W. Key switching characteristics include a turn-on delay of 19ns and a fall time of 34ns.
PackageTO-247
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Rohm SCT2450KEC technical specifications.
General
Package/Case
TO-247
Continuous Drain Current (ID)
10A
Drain to Source Resistance
450mR
Drain to Source Voltage (Vdss)
1.2kV
Drain-source On Resistance-Max
585mR
Fall Time
34ns
Gate to Source Voltage (Vgs)
22V
Height
5.03mm
Input Capacitance
463pF
Lead Free
Lead Free
Length
15.9mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
85W
Mount
Through Hole
Nominal Vgs
4V
Package Quantity
360
Packaging
Rail/Tube
Polarity
N-CHANNEL
Radiation Hardening
No
Rds On Max
585mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Threshold Voltage
4V
Turn-Off Delay Time
38ns
Turn-On Delay Time
19ns
Width
20.95mm
Compliance
RoHS
Compliant
Datasheet
Rohm SCT2450KEC Datasheet
Download the complete datasheet for Rohm SCT2450KEC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

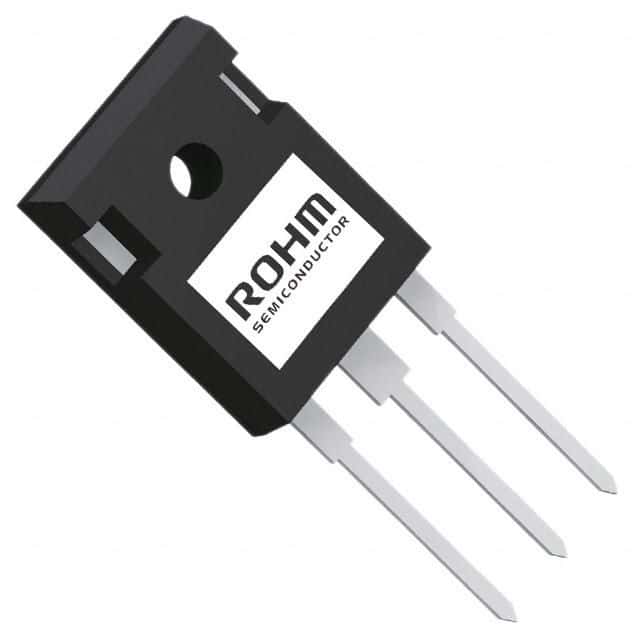

Product Images
