Technical Specifications

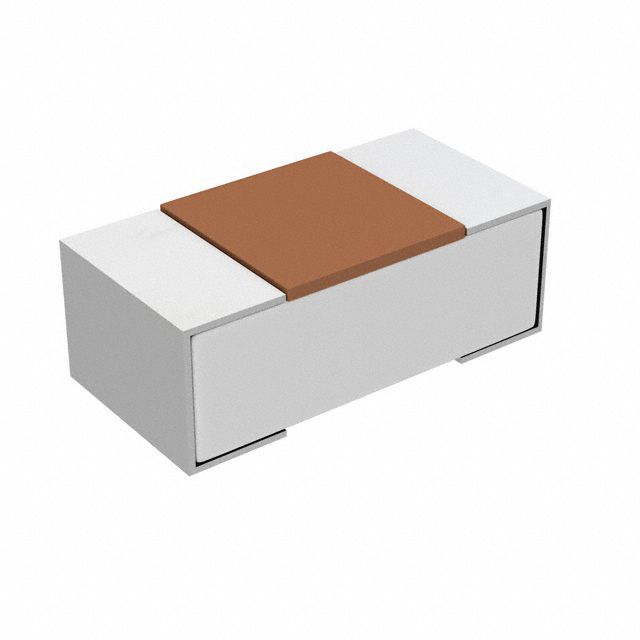

Rohm TRR01MZPF6342 technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Features | Anti-Sulfur |
| Height | 0.016inch |
| Length | 0.039inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 63mW |
| Number of Terminations | 2 |
| Package Quantity | 10000 |
| Packaging | Cut Tape |
| Resistance | 63.4kR |
| RoHS Compliant | Yes |
| Series | TRR |
| Tolerance | 1% |
| Width | 0.02inch |
Compliance
| RoHS | Compliant |
Datasheet
Rohm TRR01MZPF6342 Datasheet
Download the complete datasheet for Rohm TRR01MZPF6342 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
