Rohm
UDZSTE-1716B
Zener Diode, 16V V(Z), 2.04%, 0.2W, Silicon, Unidirectional, MINIMOLD, UMD2, SC-76, 2 PIN
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Rohm UDZSTE-1716B technical specifications.
General
Height
0.7mm
Impedance
50R
Lead Free
Lead Free
Length
1.7mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
200mW
Max Reverse Leakage Current
100nA
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Tolerance
2%
DC Rated Voltage
16V
Voltage Tolerance
2%
Width
1.25mm
Zener Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Rohm UDZSTE-1716B Datasheet
Download the complete datasheet for Rohm UDZSTE-1716B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

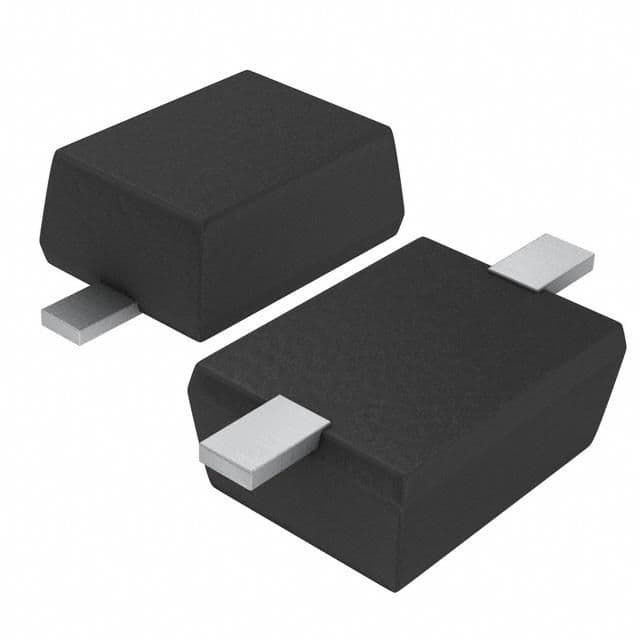

Product Images
