Surface mount bipolar junction transistor (BJT) featuring NPN and PNP polarity. This silicon transistor offers a 50V collector-emitter breakdown voltage and a continuous collector current of 70mA. With a transition frequency of 250MHz and a maximum power dissipation of 150mW, it operates within a temperature range of -55°C to 150°C. Packaged in a compact SC-88 (SOT-363) case, it is supplied on tape and reel.
PackageSOT-363
Current Rating70mA
MountingSurface Mount
PolarityNPN, PNP
Quick Jump:
Technical Specifications
Rohm UMD9NTR technical specifications.
General
| Package/Case | SOT-363 |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Voltage (VCEO) | 50V |
| Collector-emitter Voltage-Max | 300mV |
| Continuous Collector Current | 70mA |
| Current Rating | 70mA |
| Height | 0.9mm |
| hFE Min | 68 |
| Lead Free | Lead Free |
| Length | 2.1mm |
| Max Breakdown Voltage | 50V |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 100mA |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount |
| Operating Supply Voltage | 50V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN, PNP |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 250MHz |
| Width | 1.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm UMD9NTR Datasheet
Download the complete datasheet for Rohm UMD9NTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

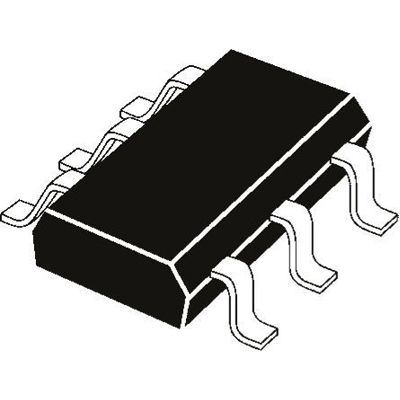

Product Images
