Aluminum electrolytic capacitor, 470µF capacitance, 25V DC rated voltage, and 20% tolerance. Features a radial package with a 5mm lead pitch, 0.6mm lead diameter, and dimensions of 10mm diameter by 12.5mm height. Offers a ripple current of 1.33A, impedance of 39mΩ, and a rated life of 10,000 hours at 105°C. Operates within a temperature range of -40°C to 105°C.
PackageRadial
Voltage25V
Capacitance470uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Rubycon 25ZLH470MEFC10X12.5 technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Height | 12.5mm |
| Impedance | 39mR |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Leakage Current | 3uA |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.33A |
| Ripple Current (AC) | 1.33A |
| RoHS Compliant | Yes |
| Series | ZLH |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Rubycon 25ZLH470MEFC10X12.5 Datasheet
Download the complete datasheet for Rubycon 25ZLH470MEFC10X12.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

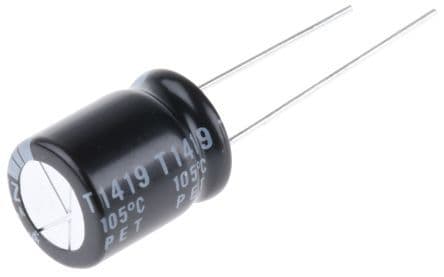

Product Images
