Polarized aluminum electrolytic capacitor with 10µF capacitance and 35V DC rated voltage. Features a 20% tolerance, 28mA ripple current, and low leakage current of 3µA. Designed for through-hole mounting with radial leads, a 1.5mm lead pitch, and a 4mm diameter. Operates across a wide temperature range from -40°C to 105°C, offering 5000 hours of life. RoHS compliant construction.
PackageRadial
Voltage35V
Capacitance10uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Rubycon 35ML10MEFC4X7 technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 4mm |
| Dielectric Material | Aluminium |
| Height | 7mm |
| Height - Seated (Max) | 0.315inch |
| Lead Diameter | 0.45mm |
| Lead Pitch | 1.5mm |
| Leakage Current | 3uA |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 5000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 28mA |
| Ripple Current (AC) | 28mA |
| RoHS Compliant | Yes |
| Series | ML |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Rubycon 35ML10MEFC4X7 Datasheet
Download the complete datasheet for Rubycon 35ML10MEFC4X7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

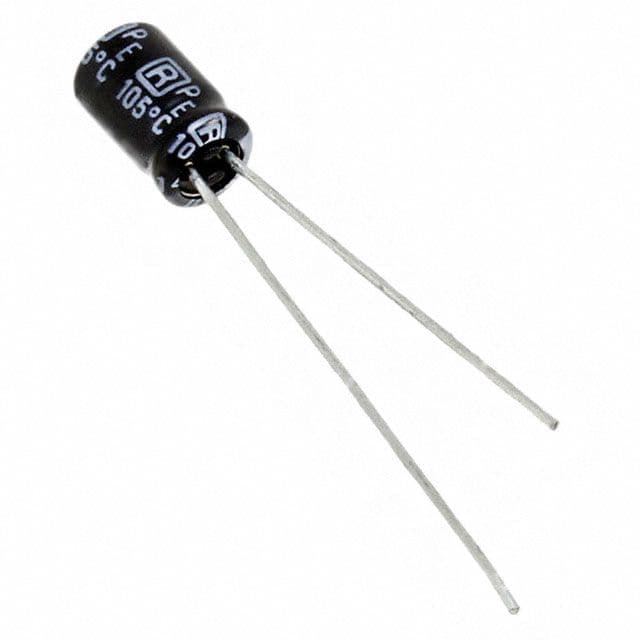

Product Images
