Radial aluminum electrolytic capacitor with 2200µF capacitance and 6.3V DC voltage rating. Features 20% tolerance, 1.96A ripple current capability, and low impedance of 20mΩ. Designed for through-hole mounting with a 5mm lead pitch and 10x20mm dimensions. Operates across a -40°C to 105°C temperature range with a 10,000-hour lifespan.
PackageRadial
Voltage6.3V
Capacitance2.2mF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Rubycon 6.3ZLH2200MEFC10X20 technical specifications.
General
| Capacitance | 2.2mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Height | 20mm |
| Impedance | 20mR |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Leakage Current | 3uA |
| Life (Hours) | 10000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.96A |
| Ripple Current (AC) | 1.96A |
| RoHS Compliant | Yes |
| Series | ZLH |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Rubycon 6.3ZLH2200MEFC10X20 Datasheet
Download the complete datasheet for Rubycon 6.3ZLH2200MEFC10X20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

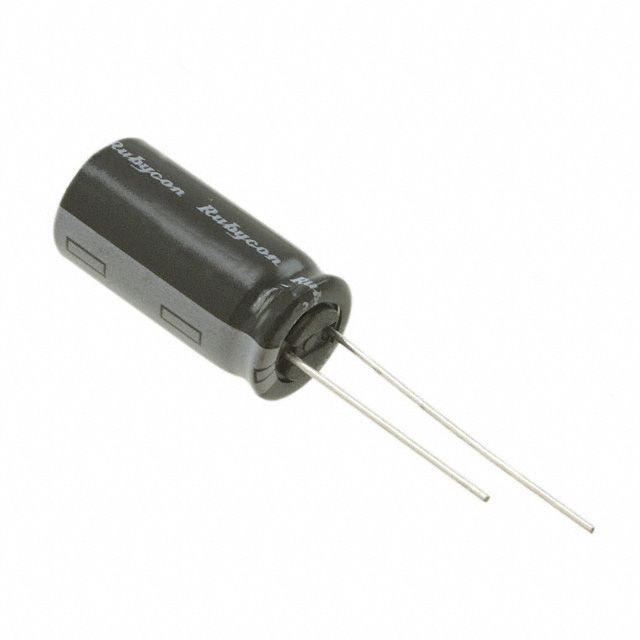

Product Images
