The Samsung CL05C181JA5NNNC is a 180pF ceramic capacitor with a C0G dielectric and a 25V voltage rating. It has a 5% tolerance and is available in a 0402 package. The capacitor is lead-free and RoHS compliant, with a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. It is suitable for surface mount applications and is packaged in tape and reel with 10,000 units per reel.
Package0402
Capacitance180pF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Samsung CL05C181JA5NNNC technical specifications.
General
| Capacitance | 180pF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Flat |
| Depth | 0.5mm |
| Dielectric | C0G |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Length | 1mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Thickness | 0.022inch |
| Tolerance | 5% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 0.02inch |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL05C181JA5NNNC Datasheet
Download the complete datasheet for Samsung CL05C181JA5NNNC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

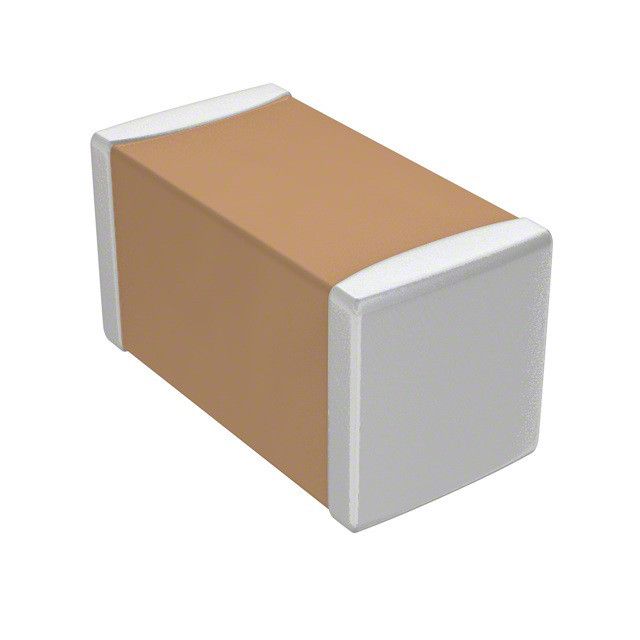

Product Images
