This 100nF ceramic MLCC capacitor from Samsung is rated for 25V and has an 80% tolerance. It is constructed with a flat, ceramic material and has a dielectric of Y5V. The capacitor is available in a 0402 package, which is surface mountable and suitable for use in high-density applications. The operating temperature range is -30°C to 85°C, and the capacitor is RoHS compliant.
Package0402
Capacitance100nF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Samsung CL05F104ZA5NNNC technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Flat |
| Depth | 0.5mm |
| Dielectric | Y5V |
| Height | 0.5mm |
| Length | 1mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Tolerance | 80% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL05F104ZA5NNNC Datasheet
Download the complete datasheet for Samsung CL05F104ZA5NNNC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

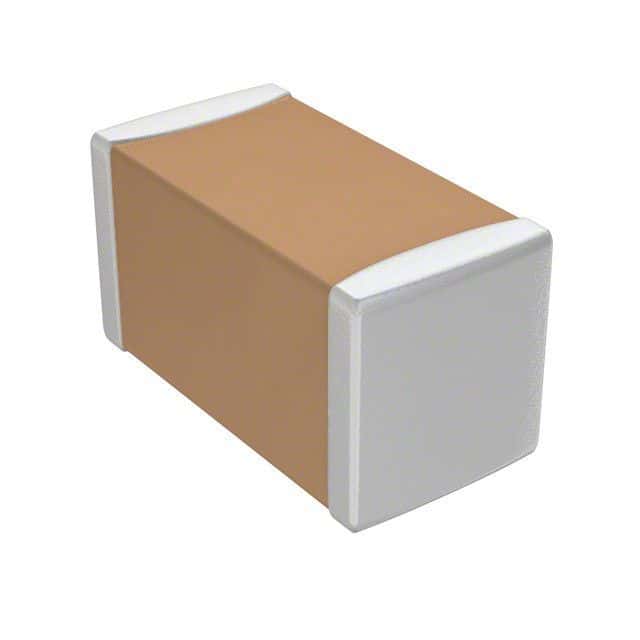

Product Images
