Technical Specifications
Samsung CL10A105KO5LNNC technical specifications.
General
| Capacitance | 1uF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.8mm |
| Dielectric | X5R |
| Height | 0.5mm |
| Length | 1.6mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Thickness | 0.02inch |
| Tolerance | 10% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 0.031inch |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL10A105KO5LNNC Datasheet
Download the complete datasheet for Samsung CL10A105KO5LNNC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

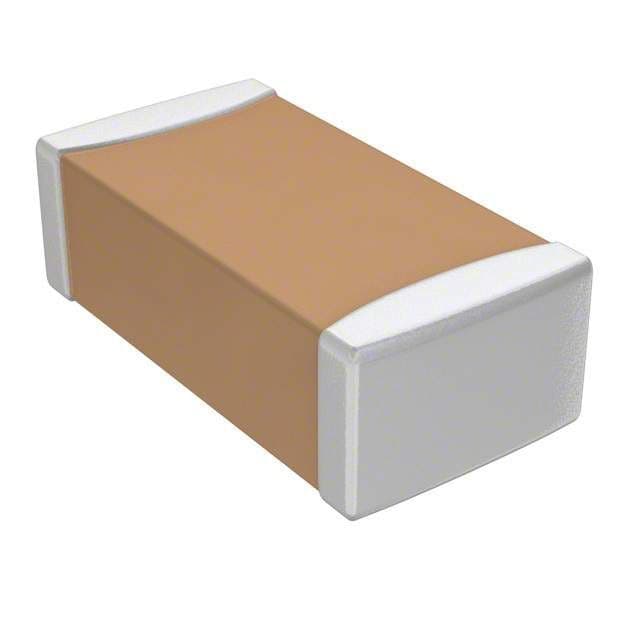

Product Images
