Multilayer Ceramic Capacitor (MLCC) with 22uF capacitance and 10V voltage rating. Features X5R dielectric and 20% tolerance. Surface mountable in a 0603 (1608 metric) case code, measuring 1.6mm length, 0.8mm width, and 0.8mm height. Operates from -55°C to 85°C and is supplied on tape and reel. Lead-free and RoHS compliant.
Package0603
Capacitance22uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Samsung CL10A226MP8NUNE technical specifications.
General
| Capacitance | 22uF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.8mm |
| Dielectric | X5R |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Tolerance | 20% |
| Voltage Rating | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL10A226MP8NUNE Datasheet
Download the complete datasheet for Samsung CL10A226MP8NUNE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

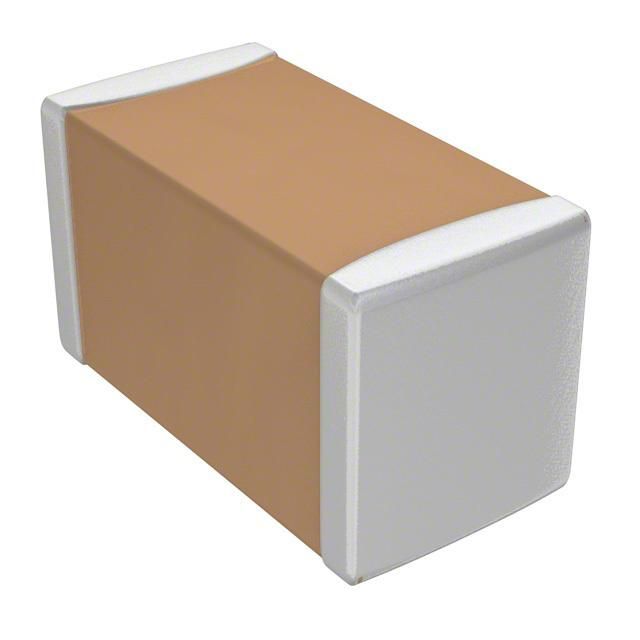

Product Images
