Technical Specifications
Samsung CL10A475KQ8NNND technical specifications.
General
| Capacitance | 4.7uF |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.8mm |
| Dielectric | X5R |
| Height | 0.8mm |
| Length | 1.6mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Tolerance | 10% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL10A475KQ8NNND Datasheet
Download the complete datasheet for Samsung CL10A475KQ8NNND to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

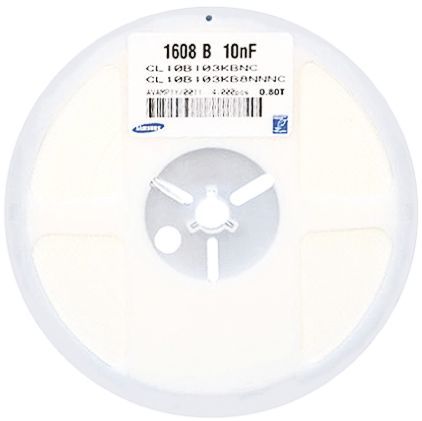

Product Images
