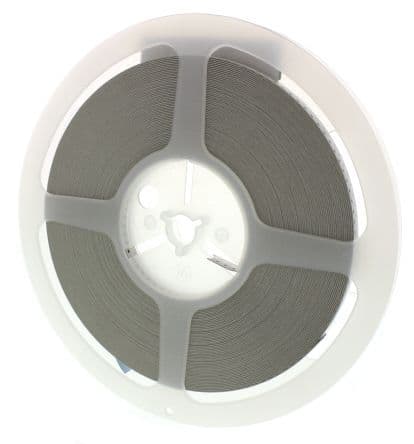

Surface mount ceramic chip capacitor with 3.3nF capacitance and 50V DC rating. Features X7R dielectric, ±10% tolerance, and a 0603 (1608 metric) case code. Operates across a wide temperature range of -55°C to +125°C. Lead-free and RoHS compliant, supplied on a 7" reel.
Package0603
Voltage50V
Capacitance3.3nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Samsung CL10B332KB8NNNC technical specifications.
General
| Capacitance | 3.3nF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.8mm |
| Dielectric | X7R |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Thickness | 0.035inch |
| Tolerance | 10% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.031inch |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL10B332KB8NNNC Datasheet
Download the complete datasheet for Samsung CL10B332KB8NNNC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
