This 3.3nF multilayer ceramic capacitor from Samsung has a 50V voltage rating and 5% tolerance. It is available in a 0603 surface mount package with a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. The capacitor is RoHS compliant and packaged in cut tape.
Package0603
Capacitance3.3nF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Samsung CL10C332JB8NNNC technical specifications.
General
| Capacitance | 3.3nF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Length | 0.063inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | CL |
| Thickness | 0.035inch |
| Tolerance | 5% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.031inch |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL10C332JB8NNNC Datasheet
Download the complete datasheet for Samsung CL10C332JB8NNNC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

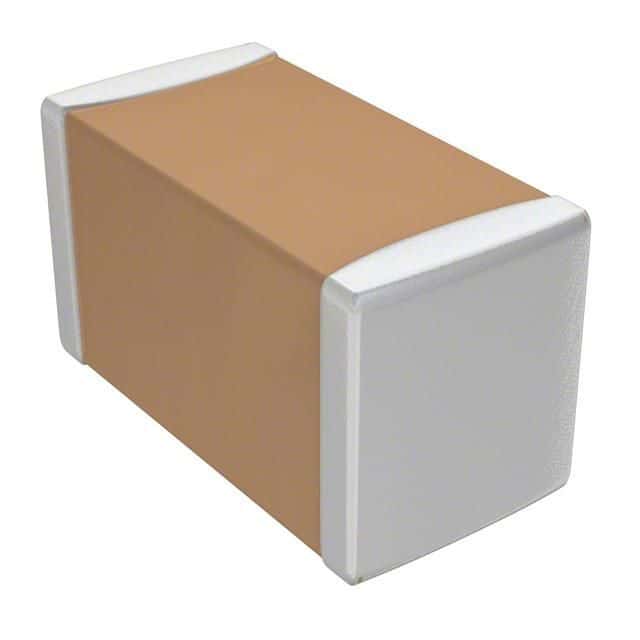

Product Images
