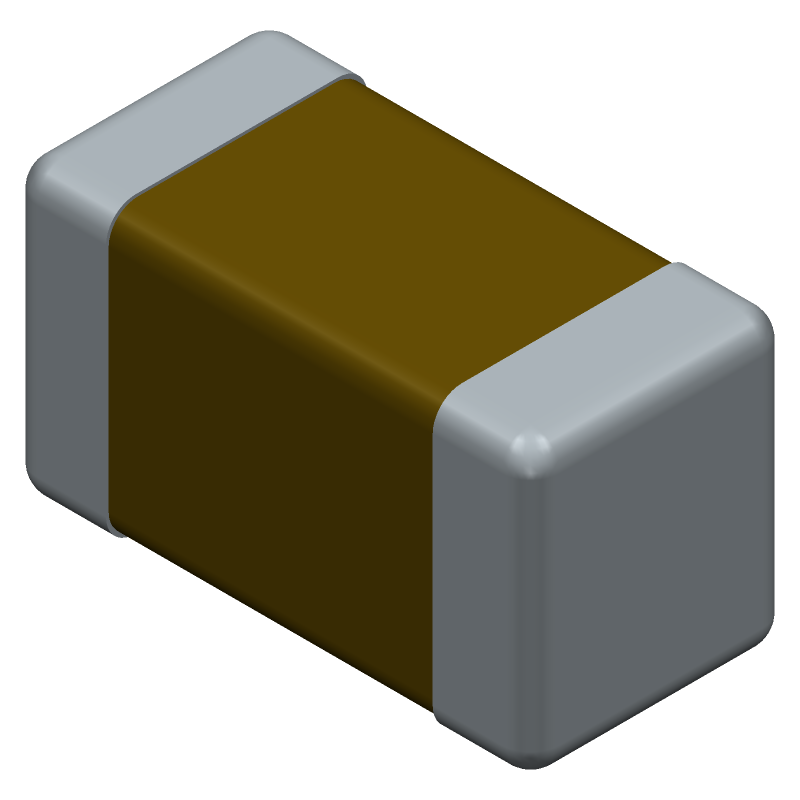

Surface mount ceramic chip capacitor with 47pF capacitance and 50V DC rated voltage. Features C0G dielectric for excellent temperature stability and ±5% tolerance. Housed in a 0603 (1608 metric) case code with dimensions of 1.6mm length, 0.8mm width, and 0.8mm height. Operates across a wide temperature range of -55°C to +125°C and is RoHS compliant.
Package0603
Voltage50V
Capacitance47pF
Voltage Rating50V
Quick Jump:
Technical Specifications
Samsung CL10C470JB8NNNC technical specifications.
General
Capacitance
47pF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Flat
Depth
0.8mm
Dielectric
C0G
Height
0.8mm
Lead Free
Lead Free
Length
1.6mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
CL
Thickness
0.035inch
Tolerance
5%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Width
0.031inch
Compliance
RoHS
Compliant
