This 16V ceramic capacitor has a capacitance of 1uF with an 80% tolerance. It is constructed with a flat design and is made from ceramic material. The capacitor is lead-free and has a maximum operating temperature of 85°C and a minimum operating temperature of -30°C. It is packaged in a 0603 case and is surface mountable.
Package0603
Voltage16V
Capacitance1uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Samsung CL10F105ZO8NNND technical specifications.
General
| Capacitance | 1uF |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.8mm |
| Dielectric | Y5V |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Tolerance | 80% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL10F105ZO8NNND Datasheet
Download the complete datasheet for Samsung CL10F105ZO8NNND to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

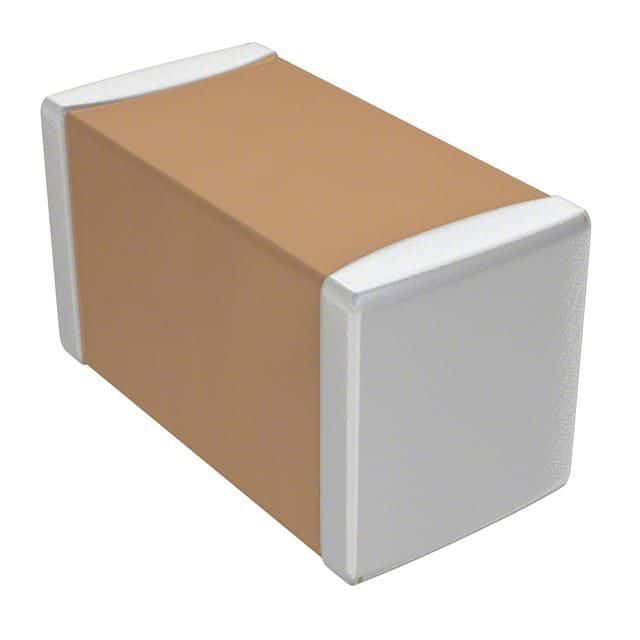

Product Images
