Multilayer Ceramic Capacitor (MLCC) with 4.7uF capacitance and 25V voltage rating. Features X5R dielectric, 10% tolerance, and a 0805 (2012 metric) surface mount package. Operating temperature range from -55°C to 85°C. Supplied on tape and reel. RoHS compliant.
Package0805
Capacitance4.7uF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Samsung CL21A475KACLRNC technical specifications.
General
| Capacitance | 4.7uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X5R |
| Height | 0.85mm |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Tolerance | 10% |
| Voltage Rating | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL21A475KACLRNC Datasheet
Download the complete datasheet for Samsung CL21A475KACLRNC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

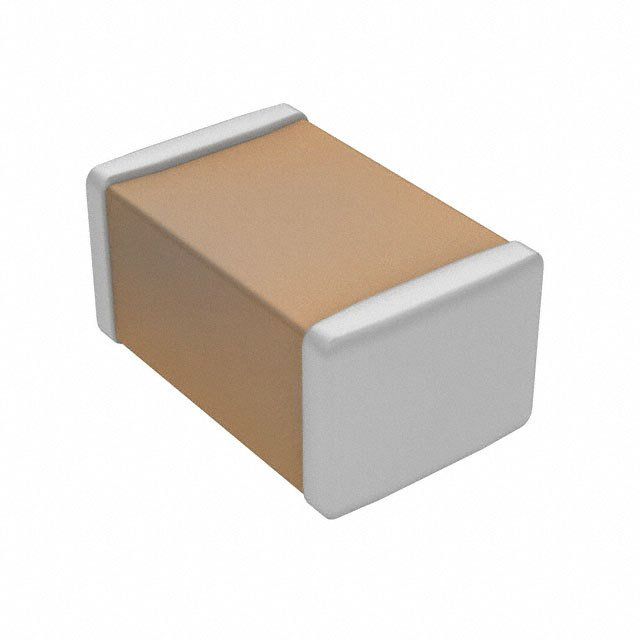

Product Images
