Multilayer Ceramic Capacitor (MLCC) with 47µF capacitance and 6.3V voltage rating. Features X5R dielectric, 20% tolerance, and a 0805 (2012 metric) surface mount package. Operates from -55°C to 85°C, is lead-free, RoHS compliant, and supplied on tape and reel.
Package0805
Capacitance47uF
Voltage Rating6.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Samsung CL21A476MQCLRNC technical specifications.
General
| Capacitance | 47uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | X5R |
| Lead Free | Lead Free |
| Length | 0.079inch |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CL |
| Thickness | 0.037inch |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL21A476MQCLRNC Datasheet
Download the complete datasheet for Samsung CL21A476MQCLRNC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

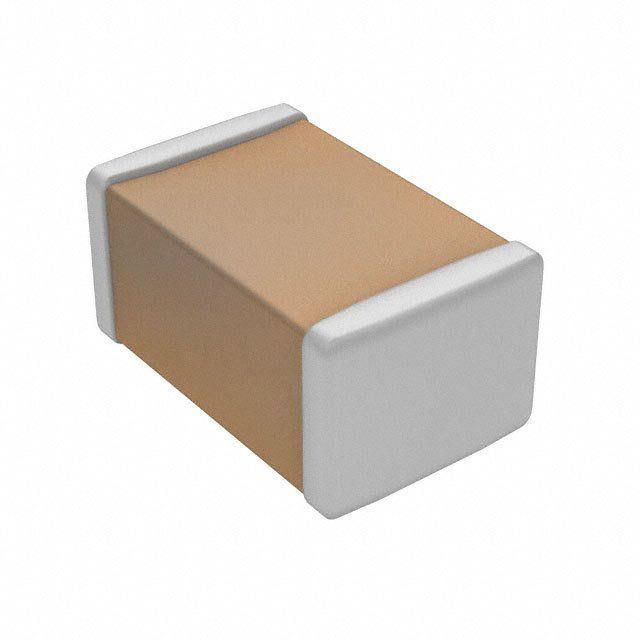

Product Images
