Technical Specifications
Samsung CL21B225KAFNNNG technical specifications.
General
| Capacitance | 2.2uF |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | X7R |
| Height | 1.25mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CL |
| Tolerance | 10% |
| Voltage | 25V |
| Voltage Rating | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL21B225KAFNNNG Datasheet
Download the complete datasheet for Samsung CL21B225KAFNNNG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

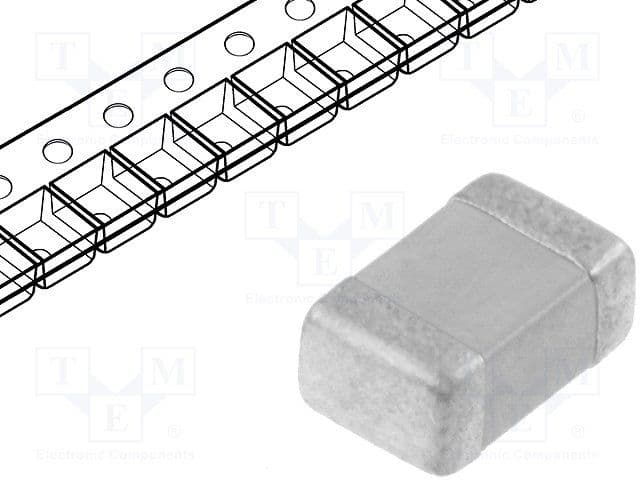

Product Images
