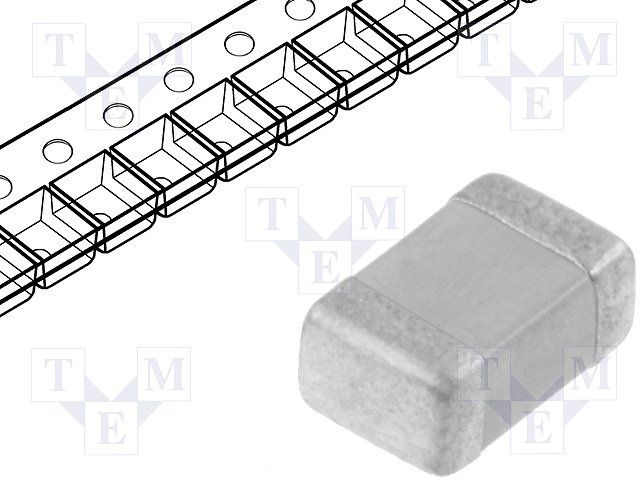

The CL21B225KPFNNNG is a 2.2uF ceramic capacitor with a 10% tolerance, suitable for surface mount applications. It has a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. The capacitor is lead free and RoHS compliant, packaged in a 0805 case and available on tape and reel.
Checking distributor stock and pricing after the page loads.
Samsung CL21B225KPFNNNG technical specifications.
| Capacitance | 2.2uF |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | X7R |
| Height | 1.25mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CL |
| Tolerance | 10% |
| Voltage | 10V |
| Voltage Rating | 10V |
| RoHS | Compliant |
No datasheet is available for this part.
