Samsung CL21C681JCCNNNC technical specifications.
General
| Capacitance | 680pF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | C0G |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Thickness | 0.037inch |
| Tolerance | 5% |
| Voltage Rating | 100V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL21C681JCCNNNC Datasheet
Download the complete datasheet for Samsung CL21C681JCCNNNC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

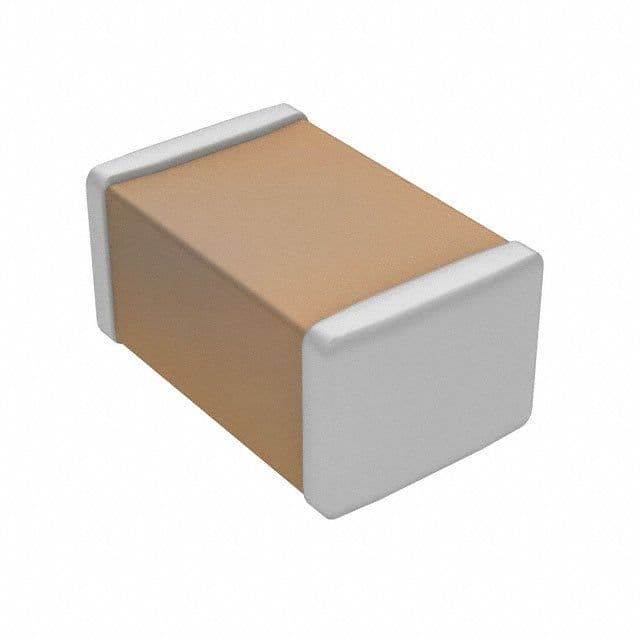

Product Images
