General purpose ceramic chip capacitor, 10µF capacitance, 10V DC rated voltage, and ±10% tolerance. Features X5R dielectric in a 1206 (3216 mm) surface mount case code. Operating temperature range from -55°C to +85°C. Packaged on a 7" reel.
Package1206
Capacitance10uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Samsung CL31A106KPHNNNE technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X5R |
| Height | 1.6mm |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Tolerance | 10% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL31A106KPHNNNE Datasheet
Download the complete datasheet for Samsung CL31A106KPHNNNE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

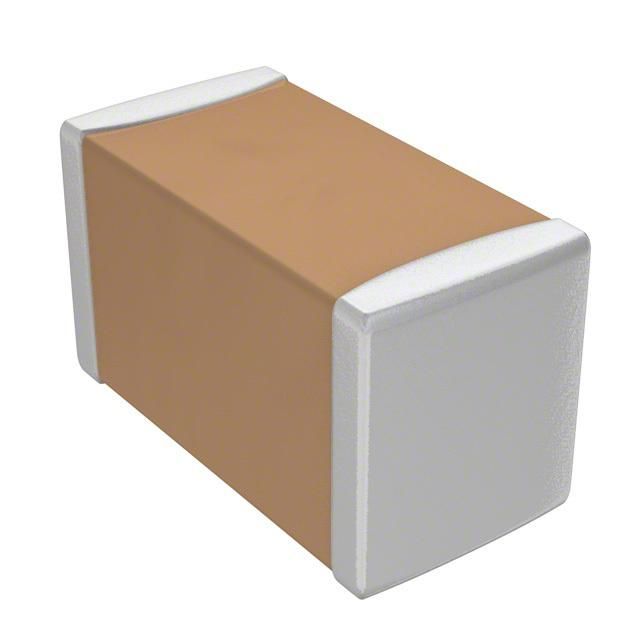

Product Images
