Multilayer Ceramic Capacitor (MLCC) with 22µF capacitance and 16V DC rated voltage. Features X5R dielectric, 20% tolerance, and a 1206 (3216 metric) SMD package. Operates from -55°C to 85°C, constructed with ceramic material, and offers a flat profile with dimensions of 3.2mm length, 1.6mm width, and 0.85mm height. This lead-free, RoHS-compliant component is supplied on tape and reel.
Package1206
Voltage16V
Capacitance22uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Samsung CL31A226MOCLNNC technical specifications.
General
| Capacitance | 22uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X5R |
| Height | 0.85mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Thickness | 0.037inch |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL31A226MOCLNNC Datasheet
Download the complete datasheet for Samsung CL31A226MOCLNNC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

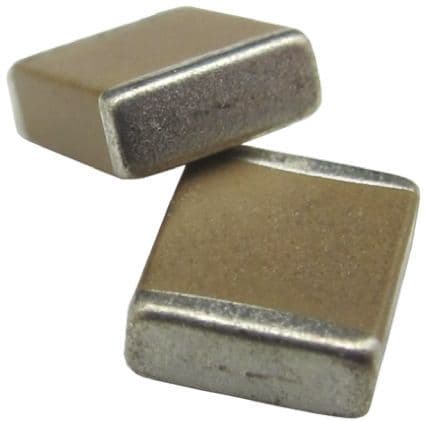

Product Images
