Surface mount ceramic capacitor network, 0.1µF capacitance, 25V DC rating, and ±10% tolerance. Features X7R dielectric, isolated circuit type, and a 1206 (3216 mm) case code. Operates across a -55ºC to +125ºC temperature range. Packaged on a 7" reel with 4000 units.
Package1206
Capacitance100nF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Samsung CL31B104KACNBNC technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Circuit Type | Isolated |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Height | 0.85mm |
| Height - Seated (Max) | 0.039inch |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Capacitors | 4 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Tolerance | 10% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL31B104KACNBNC Datasheet
Download the complete datasheet for Samsung CL31B104KACNBNC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

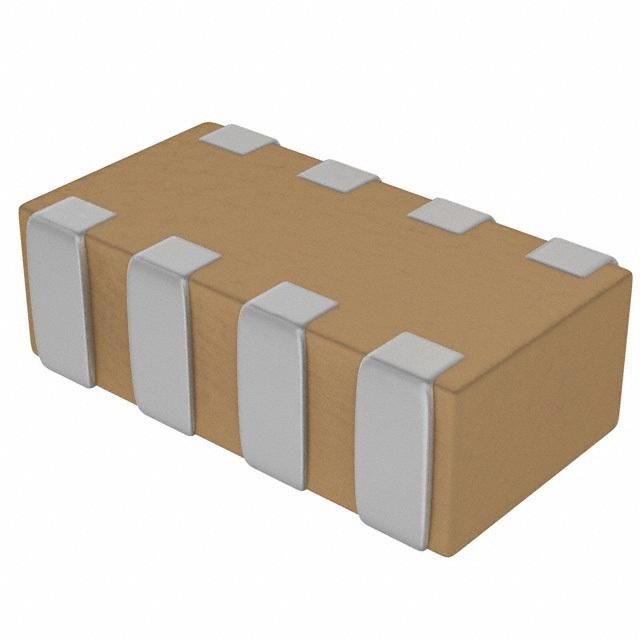

Product Images
