Samsung CL31B104KBCNFNC technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X7R |
| Height | 0.85mm |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Tolerance | 10% |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL31B104KBCNFNC Datasheet
Download the complete datasheet for Samsung CL31B104KBCNFNC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

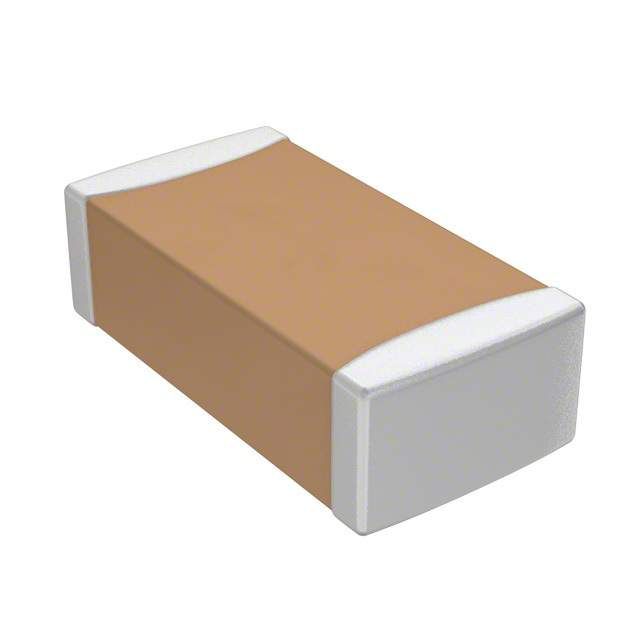

Product Images
