Surface mount multilayer ceramic capacitor with 4.7µF capacitance and 25V DC rating. Features X7R dielectric for stable performance across a -55°C to 125°C operating temperature range. Housed in a 1206 (3216 metric) case code with 10% tolerance. Lead-free and RoHS compliant, supplied on tape and reel.
Package1206
Voltage25V
Capacitance4.7uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Samsung CL31B475KAHNNNE technical specifications.
General
| Capacitance | 4.7uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X7R |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Thickness | 0.071inch |
| Tolerance | 10% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL31B475KAHNNNE Datasheet
Download the complete datasheet for Samsung CL31B475KAHNNNE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

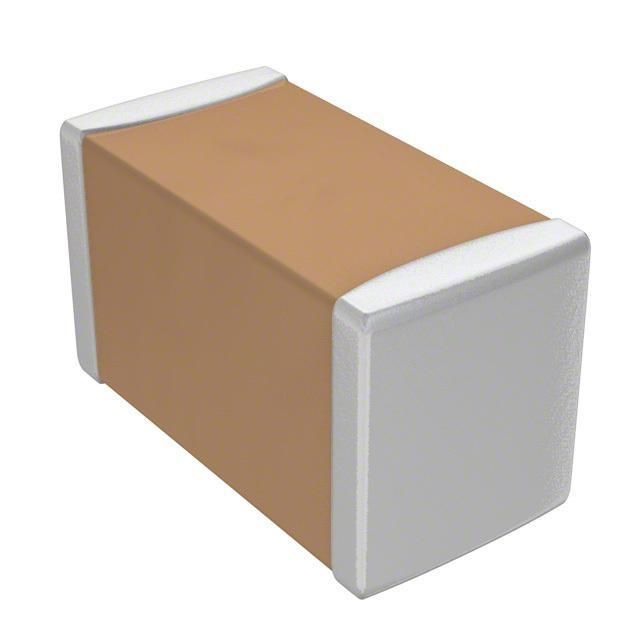

Product Images
