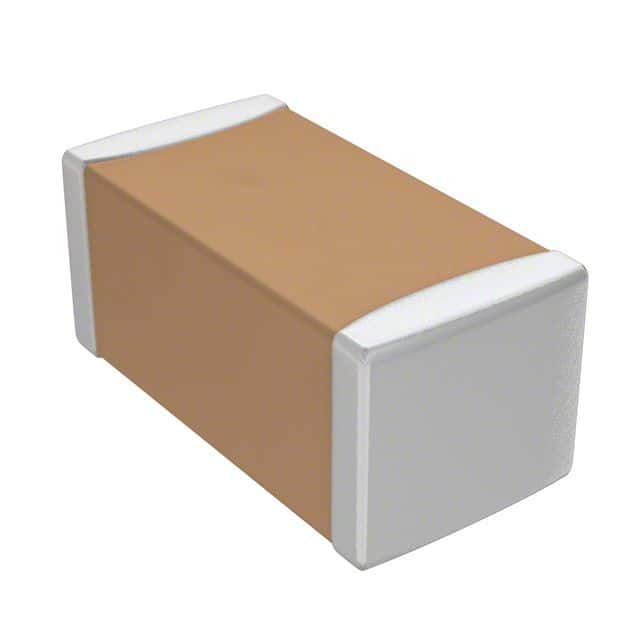

Multilayer Ceramic Capacitor (MLCC) with 3.3nF capacitance and 50V voltage rating. Features C0G dielectric for stable performance and a 5% tolerance. This surface mount component is housed in a 1206 imperial (3216 metric) case, measuring 3.2mm in length, 1.6mm in width, and 1.25mm in height. Operating across a temperature range of -55°C to 125°C, it is supplied on tape and reel and is RoHS compliant.
Package1206
Voltage50V
Capacitance3.3nF
Voltage Rating50V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Samsung CL31C332JBFNNNE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Samsung CL31C332JBFNNNE technical specifications.
General
| Capacitance | 3.3nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | C0G |
| Height | 1.25mm |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Thickness | 0.055inch |
| Tolerance | 5% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL31C332JBFNNNE Datasheet
Download the complete datasheet for Samsung CL31C332JBFNNNE to view detailed technical specifications.
