Technical Specifications
Samsung CL31C470KGFNNNF technical specifications.
General
| Capacitance | 47pF |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | C0G |
| Height | 1.25mm |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Thickness | 0.055inch |
| Tolerance | 10% |
| Voltage Rating | 500V |
| DC Rated Voltage | 500V |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL31C470KGFNNNF Datasheet
Download the complete datasheet for Samsung CL31C470KGFNNNF to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

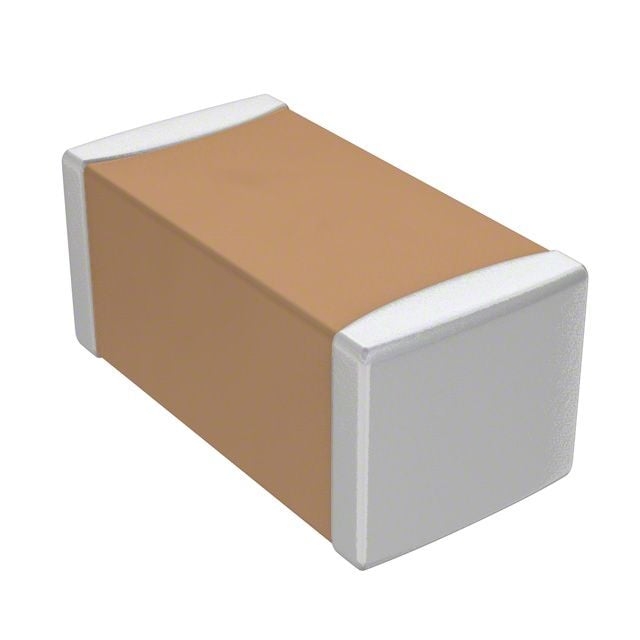

Product Images
