Surface mount ceramic chip capacitor, 22µF capacitance, 25V DC rated voltage, and ±10% tolerance. Features X5R dielectric in a 1210 (3225 mm) case code with dimensions of 3.2mm length, 2.5mm width, and 2.5mm depth. Operates across a temperature range of -55°C to +85°C and is RoHS compliant.
Package1210
Voltage25V
Capacitance22uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Samsung CL32A226KAJNNNE technical specifications.
General
| Capacitance | 22uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | X5R |
| Height | 2.5mm |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Thickness | 0.106inch |
| Tolerance | 10% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL32A226KAJNNNE Datasheet
Download the complete datasheet for Samsung CL32A226KAJNNNE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

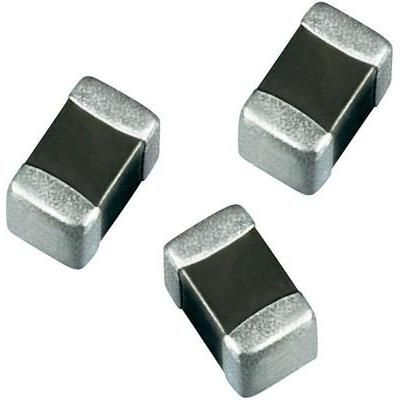

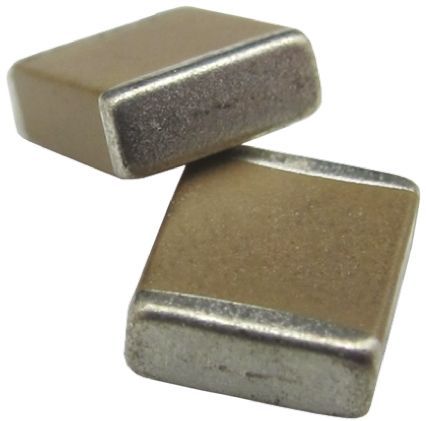

Product Images
