Multilayer Ceramic Capacitor (MLCC) with 22µF capacitance and 16V DC rated voltage. Features X7R dielectric, 10% tolerance, and a 1210 (3225 metric) surface mount package. Operates from -55°C to 125°C, constructed with lead-free, RoHS-compliant ceramic material. Supplied in tape and reel packaging.
Package1210
Voltage10V
Capacitance22uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Samsung CL32B226KOJNNNE technical specifications.
General
| Capacitance | 22uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | X7R |
| Height | 2.5mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Tolerance | 10% |
| Voltage | 10V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL32B226KOJNNNE Datasheet
Download the complete datasheet for Samsung CL32B226KOJNNNE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

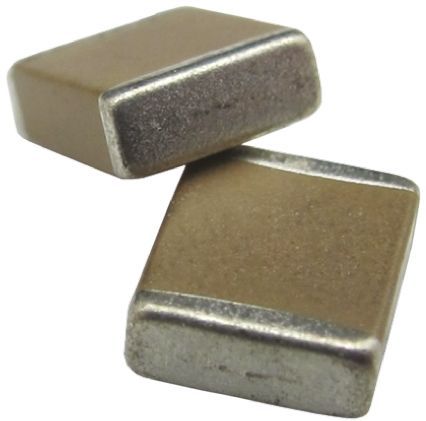

Product Images
