Multilayer Ceramic Capacitor (MLCC) with 4.7µF capacitance and 50V DC rating. Features X7R dielectric, 10% tolerance, and a 1210 (3225 metric) surface mount package. Operates from -55°C to 125°C and includes soft termination for enhanced reliability. Packaged in tape and reel for automated assembly.
Package1210
Voltage50V
Capacitance4.7uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Samsung CL32B475KBUYNNE technical specifications.
General
| Capacitance | 4.7uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | X7R |
| Features | Soft Termination |
| Height | 1.8mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CL |
| Thickness | 0.079inch |
| Tolerance | 10% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Samsung CL32B475KBUYNNE Datasheet
Download the complete datasheet for Samsung CL32B475KBUYNNE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

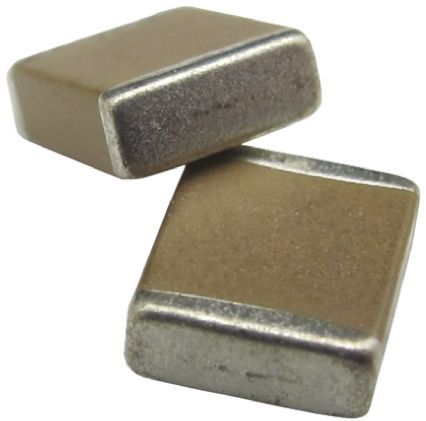

Product Images
