The SCS 22uF 25V Molded Flat SMD/SMT Capacitor is a solid tantalum capacitor with a capacitance of 22uF and a voltage rating of 25V. It has a molded package with a flat construction and is designed for surface mount applications. The capacitor has a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. It is RoHS compliant and available in tape and reel packaging.
PackageMolded
Voltage25V
Capacitance22uF
MountingSurface Mount
Quick Jump:
Technical Specifications
Samsung TCSCS1E226KDAR technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Molded |
| Construction | Flat |
| Depth | 4.3mm |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 800mR |
| Height | 2.8mm |
| Leakage Current | 5.5uA |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SCS |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Samsung TCSCS1E226KDAR Datasheet
Download the complete datasheet for Samsung TCSCS1E226KDAR to view detailed technical specifications.
No datasheet is available for this part.

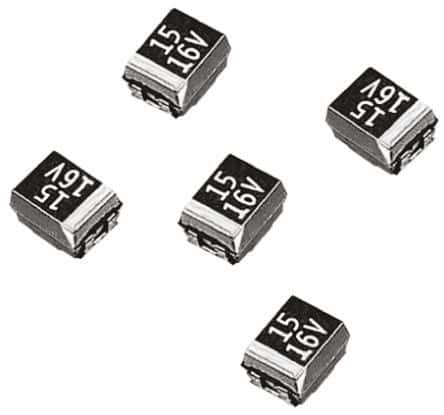

Product Images
