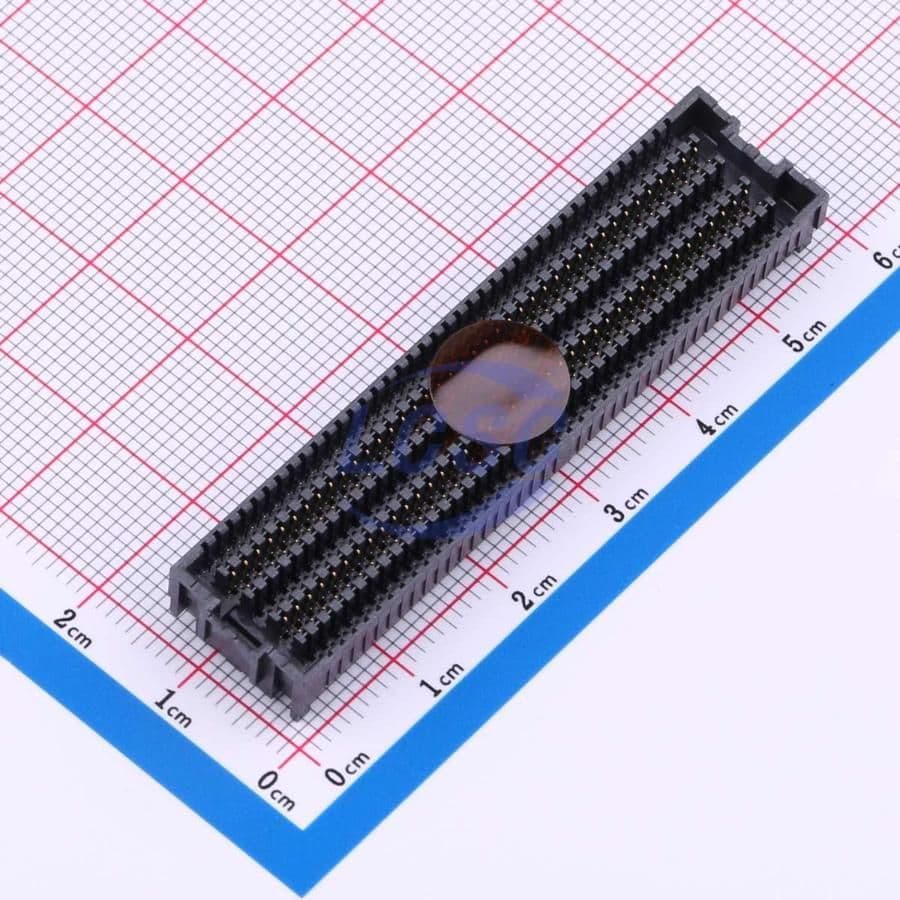

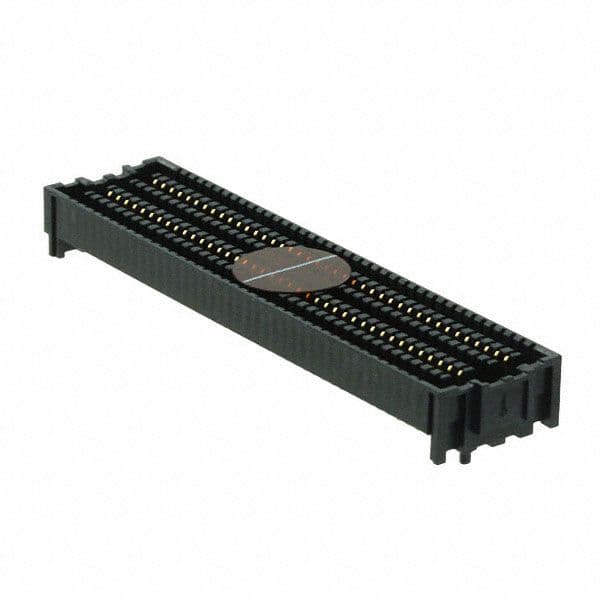

160-position, 4-row shrouded header socket for board-to-board applications. Features 1.27mm pitch, surface mount termination with solder tail, and gold contact plating. Rated for 1.1A current and 240V voltage, operating across a -55°C to 125°C temperature range. Supplied in cut tape packaging and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Samtec ASP-134603-01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Plating | Gold |
| Current Rating | 1.1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Positions | 160 |
| Number of Rows | 4 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | ASP |
| Voltage Rating | 240V |
| RoHS | Compliant |
Download the complete datasheet for Samtec ASP-134603-01 to view detailed technical specifications.
