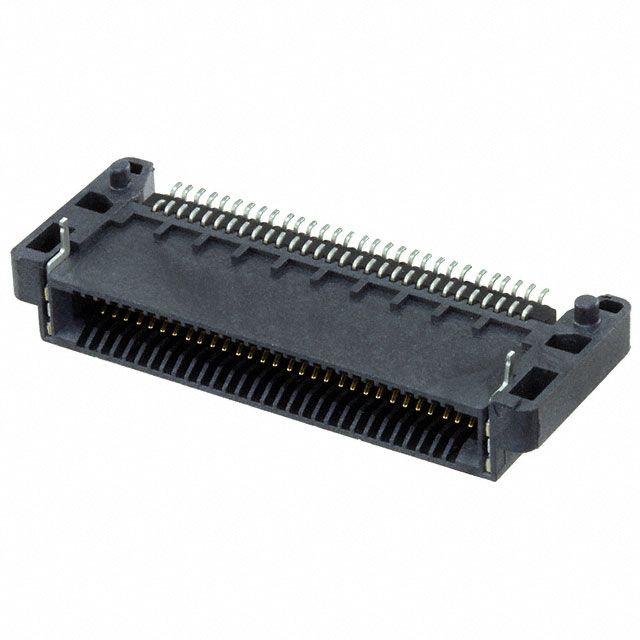

This 60-position, 2-row surface mount header features cantilever contacts with a gold plating and copper base. The contacts are made of polymer insulation material and are available in a black color. The header is designed for surface mount applications and can operate within a temperature range of -55°C to 125°C. It is compliant with RoHS regulations and is available in a tray packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Samtec HSEC8-130-01-L-RA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Black |
| Contact Material | Copper |
| Contact Plating | Gold |
| Contact Type | Cantilever |
| Gender | Female |
| Insulation Material | Polymer |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 60 |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Packaging | Tray |
| Pitch | 0.8mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Edge Rate™ HSEC8 |
| Termination | Solder |
| RoHS | Compliant |
