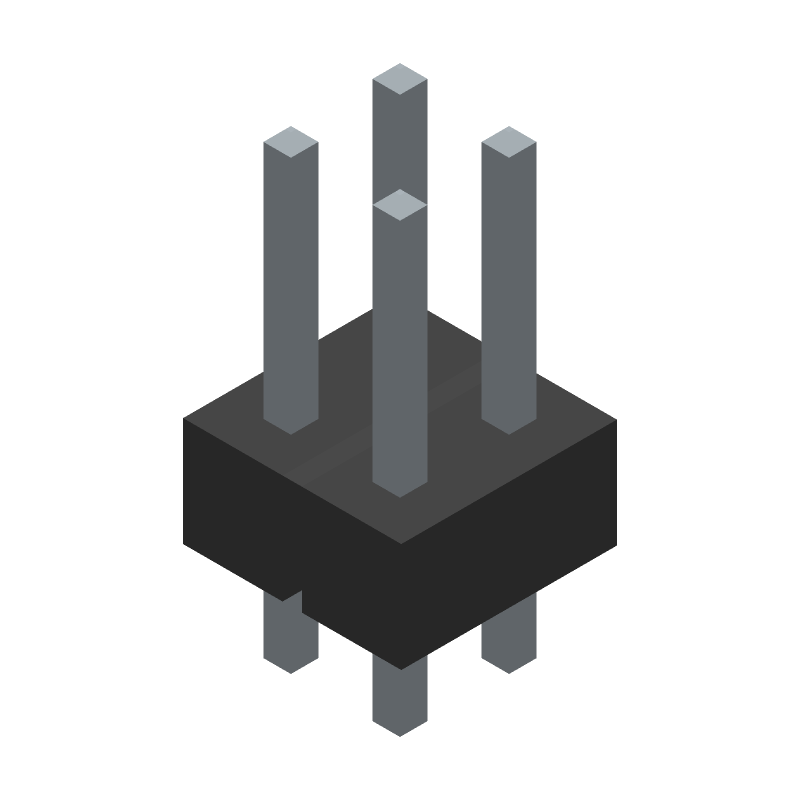

The HTSW-102-07-L-D is a 4-position, 2-row through hole header with a gold-plated contact finish and a maximum operating temperature of 125°C. It is made from bronze with a gold plating and features a square contact shape. The header is UL94 V-0 flammability rated and RoHS compliant. It is available in a bag packaging with a pitch of 2.54mm and a termination of solder.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Samtec HTSW-102-07-L-D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Natural |
| Insulation Material | Polymer |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Packaging | Bag |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HTSW |
| Termination | Solder |
| RoHS | Compliant |
