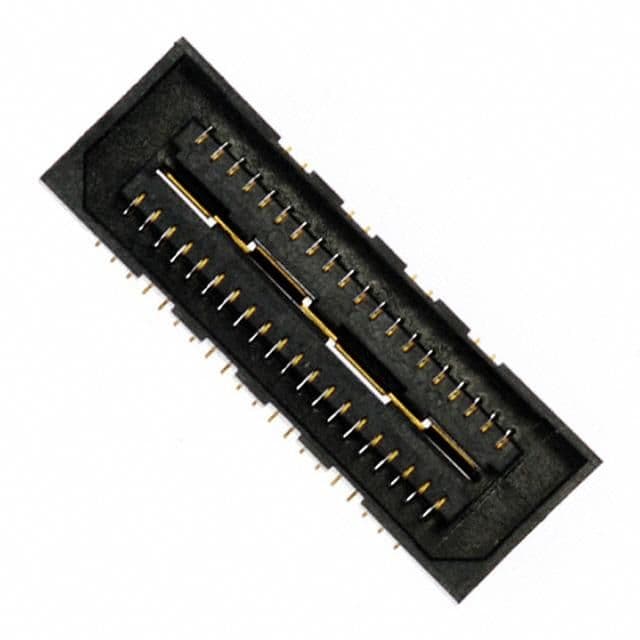

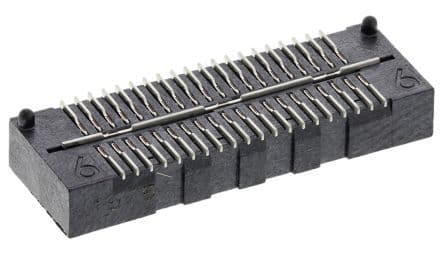

0.8mm 40 Pos 2 Row Receptacle, Straight, SMD Socket Strip

Samtec

QSE-020-01-L-D-A

Name: QSE-020-01-L-D-A Samtec
Brand: Samtec
SKU: QSE-020-01-L-D-A

0.8mm 40 Pos 2 Row Receptacle, Straight, SMD Socket Strip

High-speed socket strip receptacle with 40 positions and 2 rows, featuring a 0.8mm pitch and straight, surface mount orientation. Contact material is bronze with gold plating, supporting a 2A current rating and 225V voltage rating. Operating temperature range is -55°C to 125°C, with a mated stacking height of 25mm. Housing color is black, and the component is RoHS compliant.

Voltage Rating225V

Current Rating2A

MountingSurface Mount

Quick Jump:

Technical Specifications

Samtec QSE-020-01-L-D-A technical specifications.

General

Contact Material	Bronze
Contact Plating	Gold
Current Rating	2A
Depth	7.24mm
Gender	Receptacle
Housing Color	Black
Lead Free	Lead Free
Length	21.27mm
Mated Stacking Heights	25mm
Max Current Rating	2A
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Max Voltage Rating (AC)	225V
Mount	Surface Mount
Number of Contacts	40
Number of Positions	40
Number of Rows	2
Orientation	Straight
Packaging	Tray
Pitch	0.8mm
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	3.7mm
Series	Q Strip® QSE
Termination	Solder
Voltage Rating	225V
