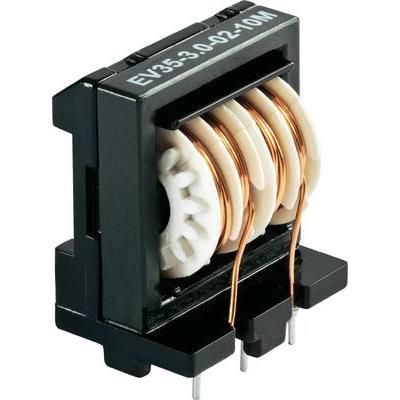

Single-phase EMI/RFI power line filter with a 1.5A current rating and 250V AC voltage rating. Features 1.8mH inductance and 72mR DC resistance, designed for through-hole PCB mounting with a radial lead termination. Operates across a temperature range of -25°C to 100°C, with a self-resonant frequency of 400Hz. This RoHS compliant component is packaged radially for bulk distribution.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schaffner EV20-1.5-02-1M8 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Radial |
| Current Rating | 1.5A |
| DC Current | 1.5A |
| DC Resistance (DCR) | 72mR |
| Depth | 17mm |
| Height | 25mm |
| Inductance | 1.8mH |
| Lead Diameter | 0.8mm |
| Lead Pitch | 13mm |
| Lead/Base Style | Pin |
| Length | 21mm |
| Max Current Rating | 1.5A |
| Max DC Current | 1.5A |
| Max Operating Temperature | 100°C |
| Military Standard | Not |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Number of Lines | 2 |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Resistance | 72mR |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 400Hz |
| Series | EV |
| Series Resistance | 72mR |
| Termination | Radial |
| Test Frequency | 10kHz |
| Tolerance | 30% |
| Voltage Rating (AC) | 250V |
| Width | 16mm |
| RoHS | Compliant |
Download the complete datasheet for Schaffner EV20-1.5-02-1M8 to view detailed technical specifications.
