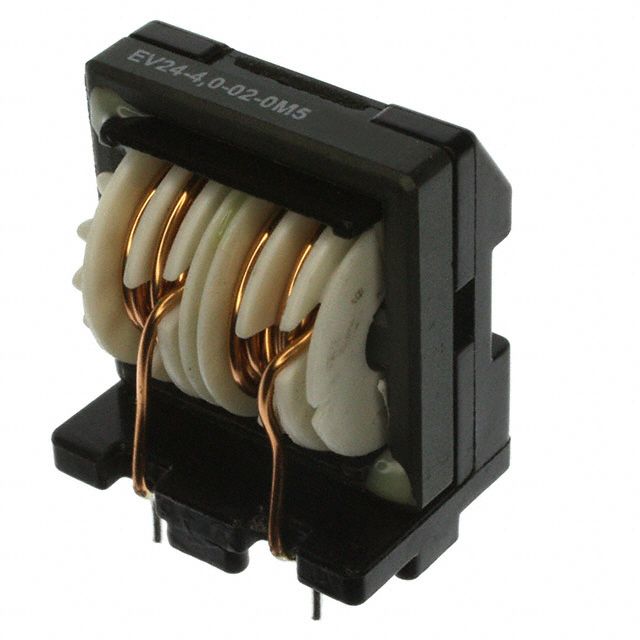

Dual common mode choke with 500µH inductance per line, rated for 4A maximum DC current. Features a low 16mΩ DC resistance and a 250V AC voltage rating. Designed for through-hole PCB mounting with a 13mm lead pitch and radial termination. Operates across a temperature range of -25°C to 100°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schaffner EV24-4.0-02-0M5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Schaffner EV24-4.0-02-0M5 technical specifications.
| Package/Case | Radial |
| Current Rating | 4A |
| Depth | 17.4mm |
| Height | 29.1mm |
| Inductance | 500uH |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 13mm |
| Length | 24.6mm |
| Max Current Rating | 4A |
| Max DC Current | 4A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Number of Lines | 2 |
| Package Quantity | 96 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 400Hz |
| Series | EV |
| Series Resistance | 16mR |
| Termination | Radial |
| Test Frequency | 10kHz |
| Tolerance | 30% |
| Voltage Rating (AC) | 250V |
| Width | 17.4mm |
| RoHS | Compliant |
