General purpose power line filter with a 10A current rating and 250V AC/DC voltage rating. Features 0.8mH inductance, 100nF capacitance, and 1MR resistance. Designed for chassis mounting with quick connect terminations, operating from 0 to 400 Hz with a maximum operating temperature of 100°C. Approvals include UL, CSA, and ENEC, with a low leakage current of 2uA and RoHS compliance.
Frequency400Hz
Current10A
Capacitance100nF
Resistance1MR
Quick Jump:
Technical Specifications
Schaffner FN2010B-10-06 technical specifications.
General
| Approvals | UL, CSA, ENEC |
| Capacitance | 100nF |
| Current | 10A |
| Current Rating | 10A |
| Depth | 35mm |
| Frequency | 400Hz |
| Height | 29.3mm |
| Inductance | 0.8mH |
| Leakage Current | 2uA |
| Length | 64mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Chassis |
| Operating Frequency | 0 to 400 Hz |
| Package Quantity | 20 |
| Packaging | Tray |
| Resistance | 1MR |
| RoHS Compliant | Yes |
| Series | FN 2010 |
| Termination | Quick Connect |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 35mm |
Compliance
| RoHS | Compliant |
Datasheet
Schaffner FN2010B-10-06 Datasheet
Download the complete datasheet for Schaffner FN2010B-10-06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

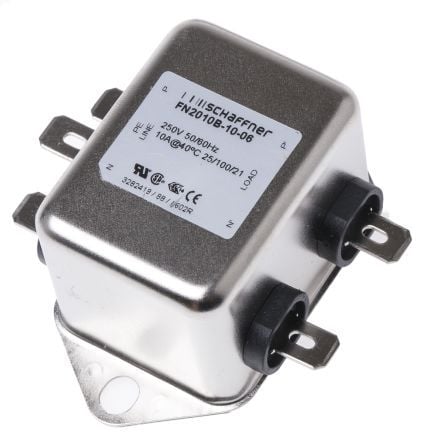

Product Images
