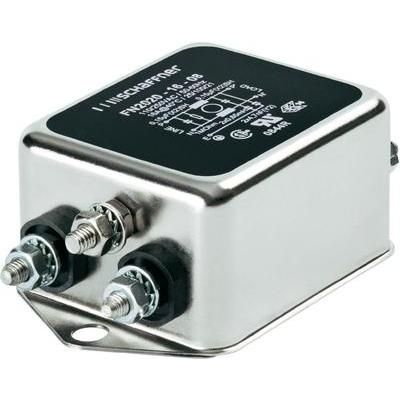

Single-phase EMI/RFI power line filter, 10A current rating, 250V AC maximum voltage. Features 800µH inductance and 150nF capacitance, operating from 0 to 400 Hz. Chassis mountable with quick connect terminations, this general-purpose filter is RoHS compliant and operates between -25°C and 100°C. Approvals include CSA, UR, and ENEC.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schaffner FN2020-10-06 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Schaffner FN2020-10-06 technical specifications.
| Approvals | CSA, UR, ENEC |
| Capacitance | 150nF |
| Current | 10A |
| Current Rating | 10A |
| Depth | 35mm |
| Filter Type | GENERAL PURPOSE |
| Frequency | 60Hz |
| Height | 29.3mm |
| Inductance | 800uH |
| Leakage Current | 740uA |
| Length | 64mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Chassis |
| Operating Frequency | 0 to 400 Hz |
| Package Quantity | 30 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FN 2020 |
| Termination | Quick Connect |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 64mm |
| Wire/Cable Gauge | 20AWG |
| RoHS | Compliant |
