General purpose power line filter designed for EMI/RFI suppression across a 0Hz to 400Hz operating frequency range. Features a 10A current rating and 250VAC/250VDC voltage rating. Includes 8mH inductance and 470nF capacitance for effective filtering. Chassis mountable with flange and solder lug terminations, operating from -25°C to 100°C.
Frequency50Hz
Current10A
Capacitance470nF
Resistance680kR
Quick Jump:
Technical Specifications
Schaffner FN2030-10-06 technical specifications.
General
| Capacitance | 470nF |
| Current | 10A |
| Current Rating | 10A |
| Depth | 54mm |
| Filter Type | STANDARD |
| Frequency | 50Hz |
| Height | 30.3mm |
| Inductance | 8mH |
| Leakage Current | 730uA |
| Length | 85mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Flanges, Chassis |
| Operating Frequency | 0 to 400Hz |
| Package Quantity | 16 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 680kR |
| RoHS Compliant | Yes |
| Series | FN 2030 |
| Termination | Quick Connect |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 54mm |
| Wire/Cable Gauge | 18AWG |
Compliance
| RoHS | Compliant |
Datasheet
Schaffner FN2030-10-06 Datasheet
Download the complete datasheet for Schaffner FN2030-10-06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

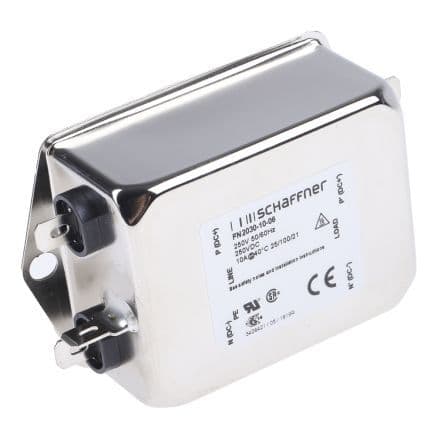

Product Images
