Single-phase EMI/RFI power line filter, 250V AC/DC rated, designed for 50/60Hz operation with a 12A maximum current rating. Features 4mH inductance, 1uF capacitance, and 330kR resistance for effective noise suppression. Chassis mountable with quick connect terminations, operating from -25°C to 100°C. RoHS compliant and suitable for 16AWG wire.
Frequency50Hz
Current12A
Capacitance1uF
Resistance330kR
Quick Jump:
Technical Specifications
Schaffner FN2030-12-06 technical specifications.
General
| Capacitance | 1uF |
| Current | 12A |
| Current Rating | 12A |
| Depth | 54mm |
| Filter Type | STANDARD |
| Frequency | 50Hz |
| Height | 30.3mm |
| Inductance | 4mH |
| Leakage Current | 870uA |
| Length | 54mm |
| Max Current Rating | 12A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Flanges, Chassis |
| Operating Frequency | 0 to 400Hz |
| Package Quantity | 16 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 330kR |
| RoHS Compliant | Yes |
| Series | FN 2030 |
| Termination | Quick Connect |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
Schaffner FN2030-12-06 Datasheet
Download the complete datasheet for Schaffner FN2030-12-06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

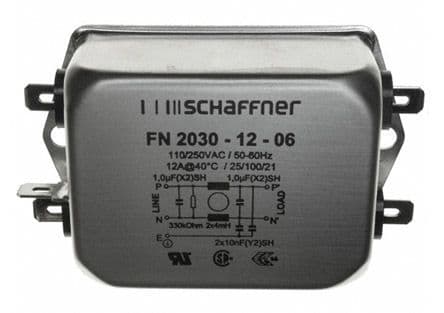

Product Images
