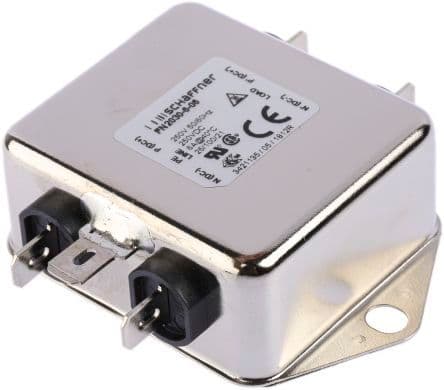

Single-phase EMI/RFI power line filter designed for 250V AC operation at 50/60Hz. Features 6A current rating, 470nF capacitance, and 8mH inductance. Operates across a wide frequency range of 0 to 400 Hz with a maximum operating temperature of 100°C and a minimum of -25°C. This chassis-mount filter includes quick connect terminations and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schaffner FN2030-6-06 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 470nF |
| Current | 6A |
| Current Rating | 6A |
| Depth | 46.6mm |
| Filter Type | STANDARD |
| Frequency | 50Hz |
| Height | 22.3mm |
| Inductance | 8mH |
| Lead Free | Lead Free |
| Leakage Current | 730uA |
| Length | 71mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Chassis |
| Operating Frequency | 0 to 400 Hz |
| Package Quantity | 20 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 680kR |
| RoHS Compliant | Yes |
| Series | FN 2030 |
| Termination | Quick Connect |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 46.6mm |
| Wire/Cable Gauge | 18AWG |
| RoHS | Compliant |
Download the complete datasheet for Schaffner FN2030-6-06 to view detailed technical specifications.
