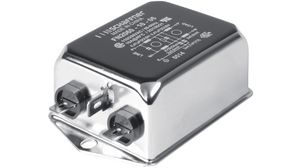

General purpose line filter for chassis mounting, rated for 250VAC at 1A. Features 12mH inductance, 220nF capacitance, and 1MR resistance. Operates across a frequency range of 0 to 400 Hz with a maximum leakage current of 400uA. Approved by UL, CSA, and EN, this RoHS compliant component offers quick connect terminations and a compact chassis mount design.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schaffner FN2060-1-06 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Schaffner FN2060-1-06 technical specifications.
| Approvals | UL, CSA, EN |
| Capacitance | 220nF |
| Current | 1A |
| Current Rating | 1A |
| Depth | 71mm |
| Filter Type | GENERAL PURPOSE |
| Frequency | 60Hz |
| Height | 29.3mm |
| Inductance | 12mH |
| Leakage Current | 400uA |
| Length | 46.6mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Chassis |
| Number of Phases | 1 |
| Operating Frequency | 0 to 400 Hz |
| Package Quantity | 20 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Resistance | 1MR |
| RoHS Compliant | Yes |
| Series | FN 2060 |
| Termination | Quick Connect |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 71mm |
| Wire/Cable Gauge | 20AWG |
| RoHS | Compliant |
