Single-phase EMI/RFI power line filter, 12A current rating, 250V AC maximum voltage. Features 580µH inductance, 470nF capacitance, and 470kΩ resistance for general-purpose filtering. Operates from 0 to 400Hz, with a maximum operating temperature of 100°C. Chassis mountable with quick connect terminations, this filter is UL, CSA, and ENEC approved and RoHS compliant.
Frequency400Hz
Current12A
Capacitance470nF
Resistance470kR
Quick Jump:
Technical Specifications
Schaffner FN2060-12-06 technical specifications.
General
Approvals
UL, CSA, ENEC
Capacitance
470nF
Current
12A
Current Rating
12A
Depth
30.3mm
Filter Type
GENERAL PURPOSE
Frequency
400Hz
Height
54mm
Inductance
580uH
Leakage Current
400uA
Length
85mm
Max Current Rating
12A
Max Operating Temperature
100°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Chassis Mount, Chassis
Number of Phases
1
Operating Frequency
0 to 400 Hz
Package Quantity
16
Packaging
Tray
Reach SVHC Compliant
No
Resistance
470kR
RoHS Compliant
Yes
Series
FN 2060
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Width
54mm
Wire/Cable Gauge
16AWG
Compliance
RoHS
Compliant
Datasheet
Schaffner FN2060-12-06 Datasheet
Download the complete datasheet for Schaffner FN2060-12-06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

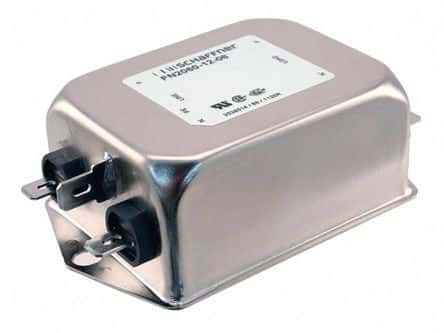

Product Images
