Chassis-mount EMI/RFI filter designed for general applications, featuring a 25A current rating and a maximum AC voltage rating of 250V. This standard filter operates across a frequency range of 0 to 400 Hz, with key components including 2mH inductance and 2.2µF capacitance. It offers a leakage current of 400µA and a resistance of 220kΩ, with operating temperatures from -25°C to 100°C. Approvals include CSA and UR, and the product is RoHS compliant.
Frequency60Hz
Current25A
Capacitance2.2uF
Resistance220kR
Quick Jump:
Technical Specifications

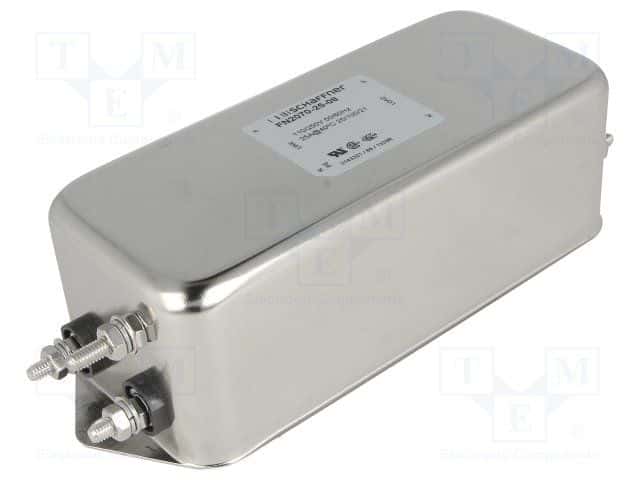

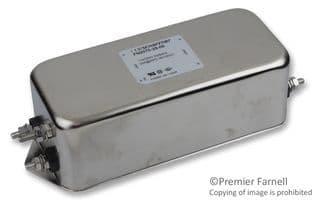

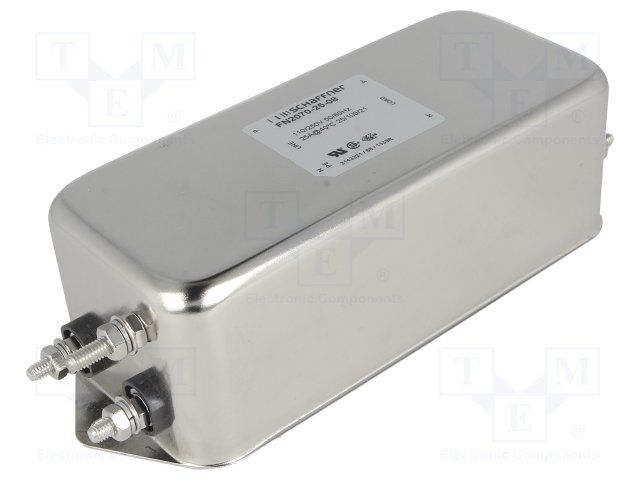

Schaffner FN2070-25-08 technical specifications.
General
| Approvals | CSA, UR |
| Capacitance | 2.2uF |
| Current | 25A |
| Current Rating | 25A |
| Depth | 45.4mm |
| Filter Type | STANDARD |
| Frequency | 60Hz |
| Height | 57.5mm |
| Inductance | 2mH |
| Leakage Current | 400uA |
| Length | 57.5mm |
| Max Current Rating | 25A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Chassis |
| Operating Frequency | 0 to 400 Hz |
| Package Quantity | 8 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Resistance | 220kR |
| RoHS Compliant | Yes |
| Series | FN 2070 |
| Termination | Stud |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Weight | 0.026808oz |
Compliance
| RoHS | Compliant |
Datasheet
Schaffner FN2070-25-08 Datasheet
Download the complete datasheet for Schaffner FN2070-25-08 to view detailed technical specifications.
