Single-phase EMI/RFI power line filter designed for 250V AC operation at 50/60Hz. Features 16A current rating, 4mH inductance, and 1µF capacitance for effective noise suppression. Chassis mountable with quick connect terminations, operating across a wide temperature range of -25°C to 100°C. RoHS compliant with a leakage current of 1.02mA.
Frequency50Hz
Current16A
Capacitance1uF
Resistance220kR
Quick Jump:
Technical Specifications
Schaffner FN2090-16-06 technical specifications.
General
| Capacitance | 1uF |
| Current | 16A |
| Current Rating | 16A |
| Depth | 113.5mm |
| Frequency | 50Hz |
| Height | 45.4mm |
| Inductance | 4mH |
| Leakage Current | 1.02mA |
| Length | 57.5mm |
| Max Current Rating | 16A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Chassis |
| Operating Frequency | 0 to 400 Hz |
| Package Quantity | 12 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Resistance | 220kR |
| RoHS Compliant | Yes |
| Series | FN 2090 |
| Termination | Quick Connect |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 57.5mm |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
Schaffner FN2090-16-06 Datasheet
Download the complete datasheet for Schaffner FN2090-16-06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

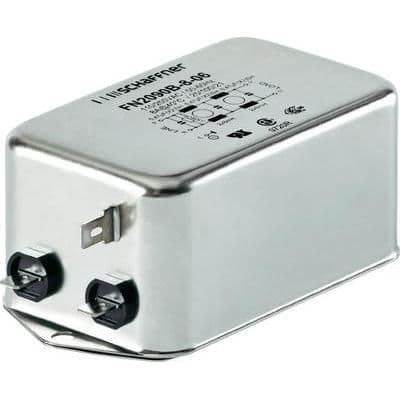

Product Images
